1.20g/cm3 Density Fiberglass Liner Transparent Acrylic Panel l Outdoor Swimming Pool

Ask Lasest Price
Brand Name :	Aupool
Model Number :	Aupool -acrylicpool
Supply Ability :	10000000000 Kilogram/Kilograms per Month
Price :	$273.00/square meters

Add to Cart

Product Details
Company Profile

1.20g/cm3 Density Fiberglass Liner Transparent Acrylic Panel l Outdoor Swimming Pool

Click Here to Contact Us, We Will Show You More Cases and Our New Products

Product Description

1.20g/cm3 Density Fiberglass Liner Transparent Acrylic Panel l Outdoor Swimming Pool

AUPOOL is a professional manufacturer of transparent acrylic swimming pools. We are the only company in China that uses British 100% Lucite PMMA raw material and dry constant temperature polymerization process to make the acrylic board not yellow and crack for 30 years outdoors. Welcome your consultation, we will provide you with private professional services 24 hours a day.

Classic Case

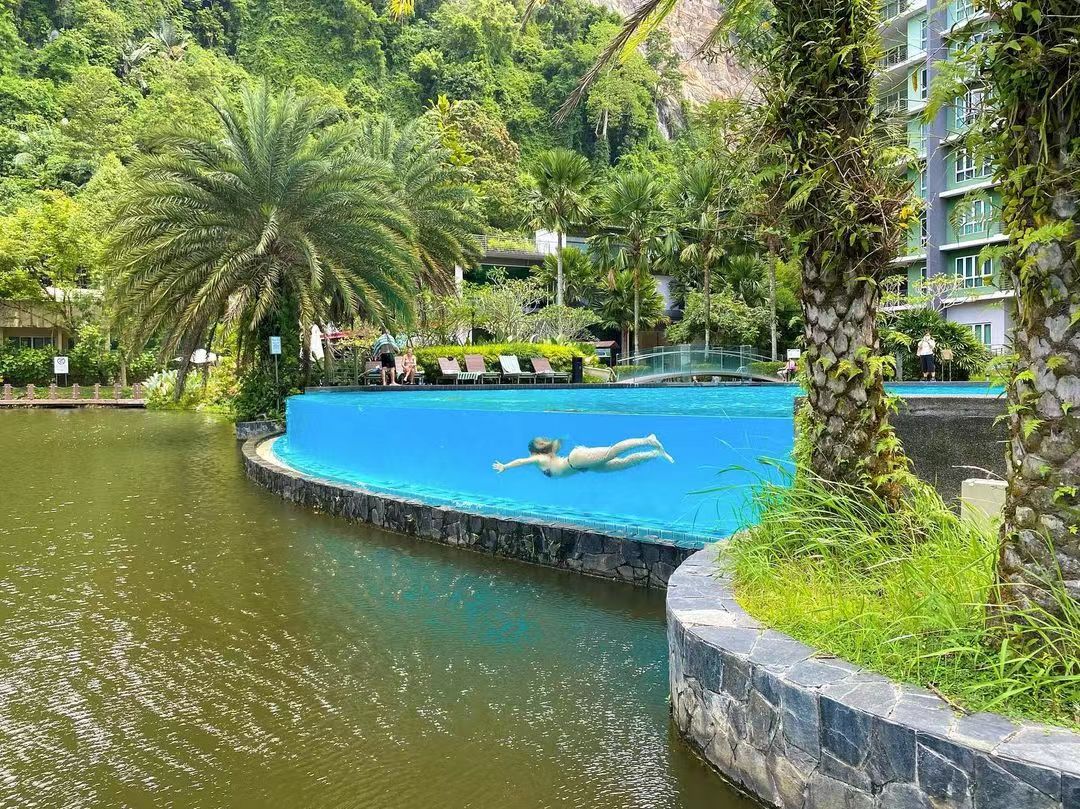

The Infinity Pool at The Sea View Hotel Ipoh, Malaysia (2012)

The hotel swimming pool requires the maximum view of the virgin forest in the distance, while ensuring a close connection with the natural lakes and hills. The infinity pool designed and built by Ridigler integrates the water curtain and integrates with nature.

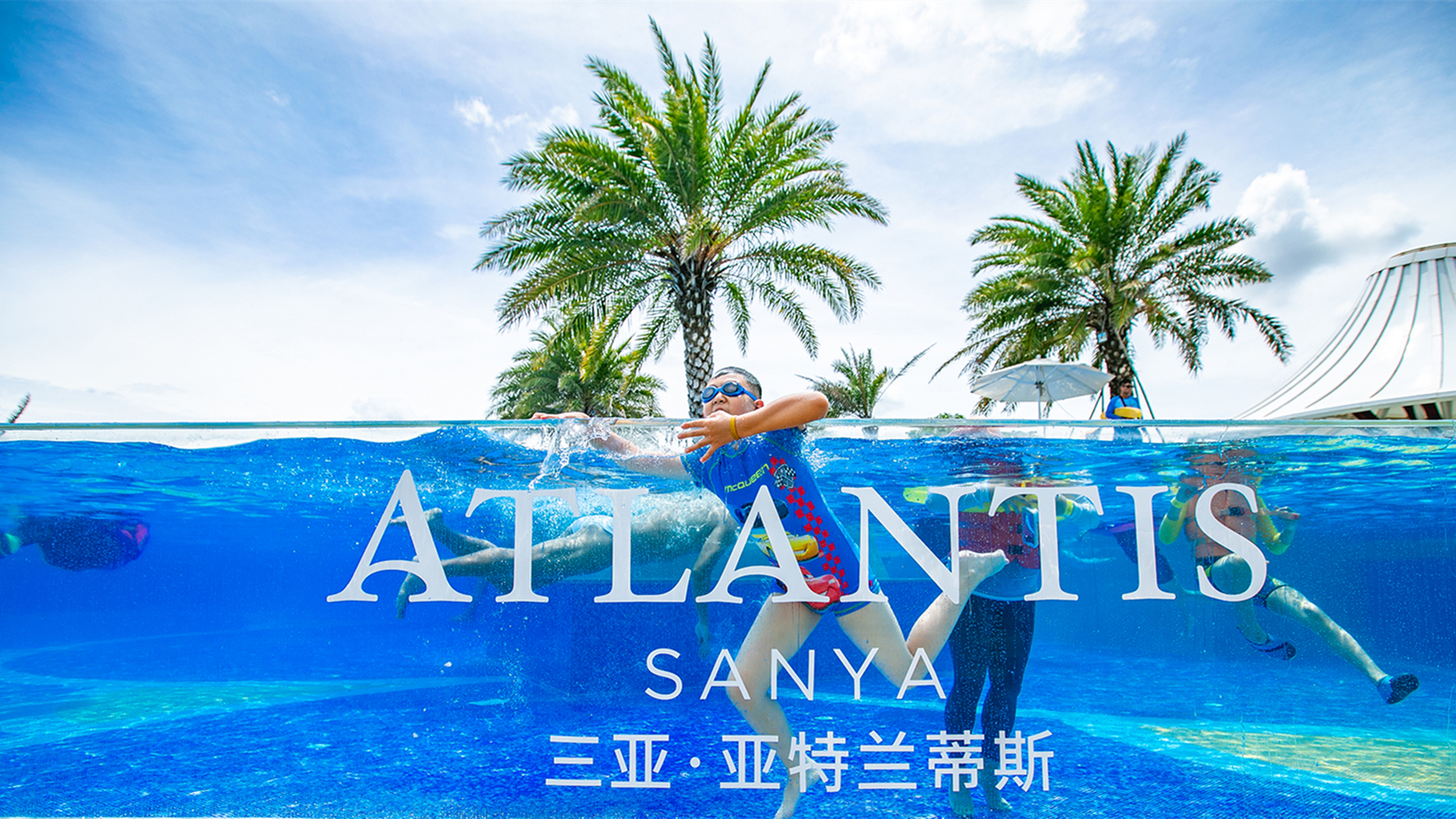

Atlantis Sanya Infinity Pool (2016)

Water continuously overflows from the 1200mm high acrylic panel, creating infinite visual effects. The 26-meter-long transparent viewing surface gives people an extremely wide view. It is called "the most beautiful infinity transparent swimming pool in the country" by netizens and has become a tourist attraction in Sanya. You must go to the Internet celebrity check-in landmark.

Sunshine One Hotel Haitang Bay Sanya suspended transparent swimming pool (2020)

It is 63 meters long and 23 meters wide. The bottom plate is made of 280mm thick acrylic plate, and the side plate is made of 160mm thick acrylic plate. The transparent part covers an area of 820 square meters. World record for swimming pools.

Shenzhen Qinchengda 22nd Century Suspended Transparent Swimming Pool (under construction in 2021)

The swimming pool is at a height of 165 meters on the top floor, and the acrylic window size is 25.2m*8.5m of whole thick acrylic, which is mainly supported by three beams at the bottom. After completion, it will refresh the world record of the world's largest single-board acrylic suspended transparent swimming pool set by our company's Lingyun Pavilion project in 2015.

Yingkou Bayu Bay Magic Hot Spring Park Hanging Transparent Swimming Pool (2020)

During the construction, the influence of the earthquake zone in the area was overcome, and the seismic resistance, safety and installation accuracy requirements of the plates all reached the international high standards. The transparent part covers an area of 260 square meters, setting a world record for the largest suspended transparent swimming pool in the world at that time.

Rooftop transparent swimming pool at Khai Hoan Hotel, Vietnam (2016)

The rooftop swimming pool of Khai Hoan Hotel uses acrylic thick plates as the transparent swimming pool side and bottom plates, and adopts the international leading water circulation system and constant temperature system, which has excellent weather resistance, safety and aesthetics.

Lingyun Pavilion suspended transparent swimming pool in Malaysia (2015)

The bottom of the swimming pool is made up of three acrylic and reinforced concrete structures. The maximum size of a single acrylic panel window is 9m*6m, creating a world record for the world's largest single-panel acrylic suspended swimming pool (2015-2021).

Outdoor Transparent Pool at Sentosa Yacht Club, Singapore (1995)

The earliest outdoor swimming pool project built by Ridigler has been used for 26 years and has not shown any discoloration and yellowing. It is one of the earliest swimming pool projects with acrylic thick plates.

Specification

Material	Lucite Acrylic
Thickness	30-950mm customized
Color	Clear/transparent
Surface	High Surface Hardness
Light transmission	High light transmission(95%)
Diaphaneity	More than 93%
Application	undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.
Density	1.20g/cm3
Application	Swimming pools and so on.
Shape	Customer's Demand
Light transmission	High light transmission(95%)
Warranty	Not yellow and crack for 30 years outdoors
Surface	High Surface Hardness
Resistant	Excellent resistance to weather

NO.	Physical Property	ISO	Unit	Result
1.	Specific gravity / density	D792	Kg/m	1175
Optical
2.	Luminous Transmittance	GB/T2410-2008	%	92.6
3.	Haze	GB/T2410-2008	%	1.8
Mechanical
4.	Tensile Strength	527-2:2012
	a) Maximum tensile strength		MPa	80.7
	b) Elongation at break		%	4
	c)Tensile modulus		MPa	3010
5.	Flexural Strength	178:2010
	a) Maximum flexural strength		MPa	87.7
	b) Maximum flexural strength		MPa	2900
6.	Comintsane Yield Stress	604:2002	MPa	No Yield Point
7.	Izod Notched Immpact Stress	D256-10 (Method c)	J/m	8
8.	Shear Strength	D732-10	MPa	62.5
9.	Rockwell Hardness	2039-2:1987	HRL	105
Thermal
10.	Flammability	UL94-2013 (7)	mm/min	24.1
11.	Heat Deflection Temperature	75-2:2013(Method B)	°C	106.2
12.	Glass Transition Temperature	11357-2:1999
	a)Teig		°C	105.6
	b)Tmg		°C	114.0
	c)Tefg		°C	122.3
13.	Coefficient of Linear Thermal Expansion	11359-2:1999	°C	-40 to 110
	a)Parallel to flow		um/m-°C	78.60
	b)Perpendicular to flow		um/m-°C	80.56
Others
14.	Water Absorption	62:2008	%	0.12
15.	Odor			None
16.	Taste			None

Company Profile

Packing & Delivery

FAQ

Q1 : What kind of products do you sell?
A1: We are both a manufacturer and a trading company, we have our own factory and production lines to provide products with high quality and good price. We are One Stop Acrylic Swimming Pool Solution Provider.

Q2 : Which items do your factory produce?
A2 : Acrylic Thick Panel ,Prefab Acrylic Pool,Endless Pool Machine,Salt Chlorine Machine,Pool Cover,Swimming Pool Intelligent Control System

Q3:What is your terms of packing?

A3:

Use film to cover the surface of the swimming pools and bathtub；
Use EPE to wrap up swimming pools and bathtub;

Use foam to protect the frame of swimming pools and bathtub;
Wooden case could make sure strong protection.

Q4.:What is your terms of payment?

A4::T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A5: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6. What is your sample policy?
A6: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7:Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery

Q8:How to install?

A8:Customers can install it by themselves, and we provide free 24-hour online service. Our company arranges a professional team to install it. AUPOOL has a skilled and experienced acrylic professional installation team, who has participated in the design and construction of more than 1,000 domestic and foreign aquariums, acrylic infinity swimming pools, acrylic suspended swimming pools and other projects, with zero quality accidents so far. We use five layers of waterproofing for the swimming pool on the roof. So far, there has been no water leakage. If there is any water leakage in the same industry, they will seek our help to solve it.

Q9. What is the acrylic sheet ?
A9: Also known as acrylic glass, plexigass and lucite, our extruded and cast acrylic sheets and
panels are in stock and ready to ship. Order online today for wholesale prices
Commonly used for specific projects, cut-to-size plexiglass sheets are cut to your desired dimensions. Aupool offers cut-to-size clear and clear acrylic sheets, allowing options to meet your precise specifications. Buying just what you need saves money on shipping and storage and eliminates waste.

Q10. Acrylic Swimming Pool Project Workflow

A10.

Rebate prior of gridding

Rebate preparation gridding

Preparation of rebate

Rebate patching by Epoxy

Rebate Patched via Sikagard

Grinded rebate

Acrylic panel prior of grouting

Laser leveling acrylic panel

Leveling acrylic panel vertically

Leveling acrylic panel horizontally

Rebates ready for acrylic panel installation

Installed acrylic panel
