Outdoor Fiberglass Swimming Pool Density 1.19-1.20kg/cm3 High Light Transmission 93%

Ask Lasest Price
Brand Name :	AUPOOL
Model Number :	AP-transparent pool
Supply Ability :	100000 Square Meter/Square Meters per Month
Price :	$8.90/kilograms 10-19 kilograms

Add to Cart

Product Details
Company Profile

Outdoor Fiberglass Swimming Pool Density 1.19-1.20kg/cm3 High Light Transmission 93%

Clear Thick Large Swimming Pool From Acrylic Outdoor UV Resistant Acrylic Swimming Pool Window For Acrylic Swimming Pool

YOUR PROFESSIONAL

ACRYLIC SWIMMING POOL MANUFACTURER

93% High transparency

Outdoor non-yellowing

Eay installation & cleaning

30 Years warranty

Products and Applications

Outdoor Fiberglass Swimming Pool Density 1.19-1.20kg/cm3 High Light Transmission 93%

Why Choose Us

Outdoor Fiberglass Swimming Pool Density 1.19-1.20kg/cm3 High Light Transmission 93%

One Time Cast 300mm Thick

Maximum 300mm one time and laminated to 800mm thickness.

30 Years Guarantee Test tensile strength and vicat softening temperature for each production batch Outdoor Fiberglass Swimming Pool Density 1.19-1.20kg/cm3 High Light Transmission 93%

Strong Production Capacity. 7-10days short production time,huge stock ,large capacity.

Top Edge Chamfered

With good chamfer on top edge,protect the body,bonding no bubbles.

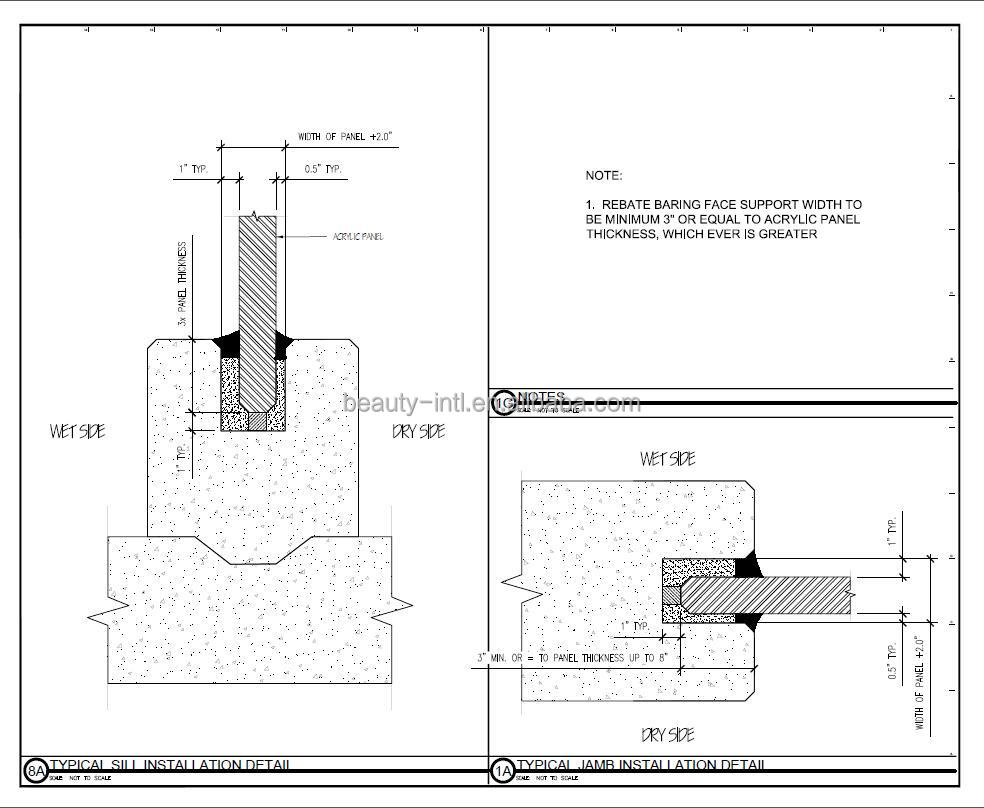

3D design

1.Offer on site installation service and technical support

2.We serve customer with customized acrylic and turnkey project. In a word just tell us your dimension or suggestion; We will try.

Our best to satisfy you. You can rest assured that both our quality
and service are the best.

Description of Scheme A

(Plane diagram)

The pool is 1.3 meters deep. Scheme A: Base plate size 18500x8500x400mm, The side panels are transparent on three sides,

and the total size of the side panels is 26000x2000x180mm.

Acrylic in pool

How to order

1.TELL US THE SIZE

Tell us your swimming pool length,width and height,water level.It is better have design file.

2. Design.By finite element analysis,we sure the thickness of acrylic,we draw design for you. Outdoor Fiberglass Swimming Pool Density 1.19-1.20kg/cm3 High Light Transmission 93%

3.PRODUCTION

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you

4.INSTALLATION

We provide you installation guide,our engineer can go to your side to do installation if necessary

Products Description

Material	Lucite Acrylic
Thickness	20-300mm customized
Color	Clear/transparent
Shape	Customer's Demand
Surface	High Surface Hardness
Light transmission	High light transmission(95%)
Diaphaneity	More than 93%
Packing	PE film masking on both sides,KT board and angle iron.
Application	undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.

Data sheet

PROPERTIES	VALUES	RULES
Density	1.19 g/cm3	ISO 1183-1:2012 Method A
Rockwell Hardness	112L	ISO 2039-2:1999
Tensile Modulus	3150MPa	EN ISO 527:2012
Tensile Strength	80.0MPa	EN ISO 527:2012
Tensile Strain at Break	3.2%	EN ISO 527-1:2012
Water Absorption	0.20%	ISO 62:2008 Method 1
Total Luminous Transmittance	93.4%	ISO 13468-1:1996
Vicat Softening Temperature	105℃	ISO 306:2013 Method B50
Light Ageing Test- UV Exposure	Grey scale: 5	ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion	72×10-6 K-1	ISO 11359-1:2014
Compressive Stress at Yield	129MPa	EN ISO 604:2003
Flexural Strength	120MPa	ISO 178:2013
Compressive Yield Strength	111MPa	ASTM D695-15
Compressive Modulus	3450MPa	ASTM D695-15
Shear Strength	59.7MPa	ASTM D732-17
Deflection Temperature under Load	100.2℃	ASTM D648-18 Method B
Modulus Elasticity	2810MPa	ASTM D695-15

Feature:

1.Warranty 30 years.
2.Outdoor use non-yellowing .
3.Lucite new material with 100% pureness.
4.100% Bonding No Bubble,the connector/gap non yellowing.

5.Maximum 300mm can be one time cast without laminated.
6.Heating again in Anneal Oven, Eliminate Environmental Stress.
7.numerical control center mold, more precise for bending size.
8.exist environment in -40℃ to 80℃.

Packaging and shipping
