Indoor Customized Swimming Pools with High Purity Acrylic Plexiglass Sheet

Ask Lasest Price
Brand Name :	AUPOOL
Model Number :	AP-infinity pool
Supply Ability :	20000 Kilogram/Kilograms per Month
Price :	$7.30 - $21.21/kilograms

Add to Cart

Product Details
Company Profile

Indoor Customized Swimming Pools with High Purity Acrylic Plexiglass Sheet

Product Description

Acrylic Swimming Pool

Application

Indoor Customized Swimming Pools with High Purity Acrylic Plexiglass Sheet

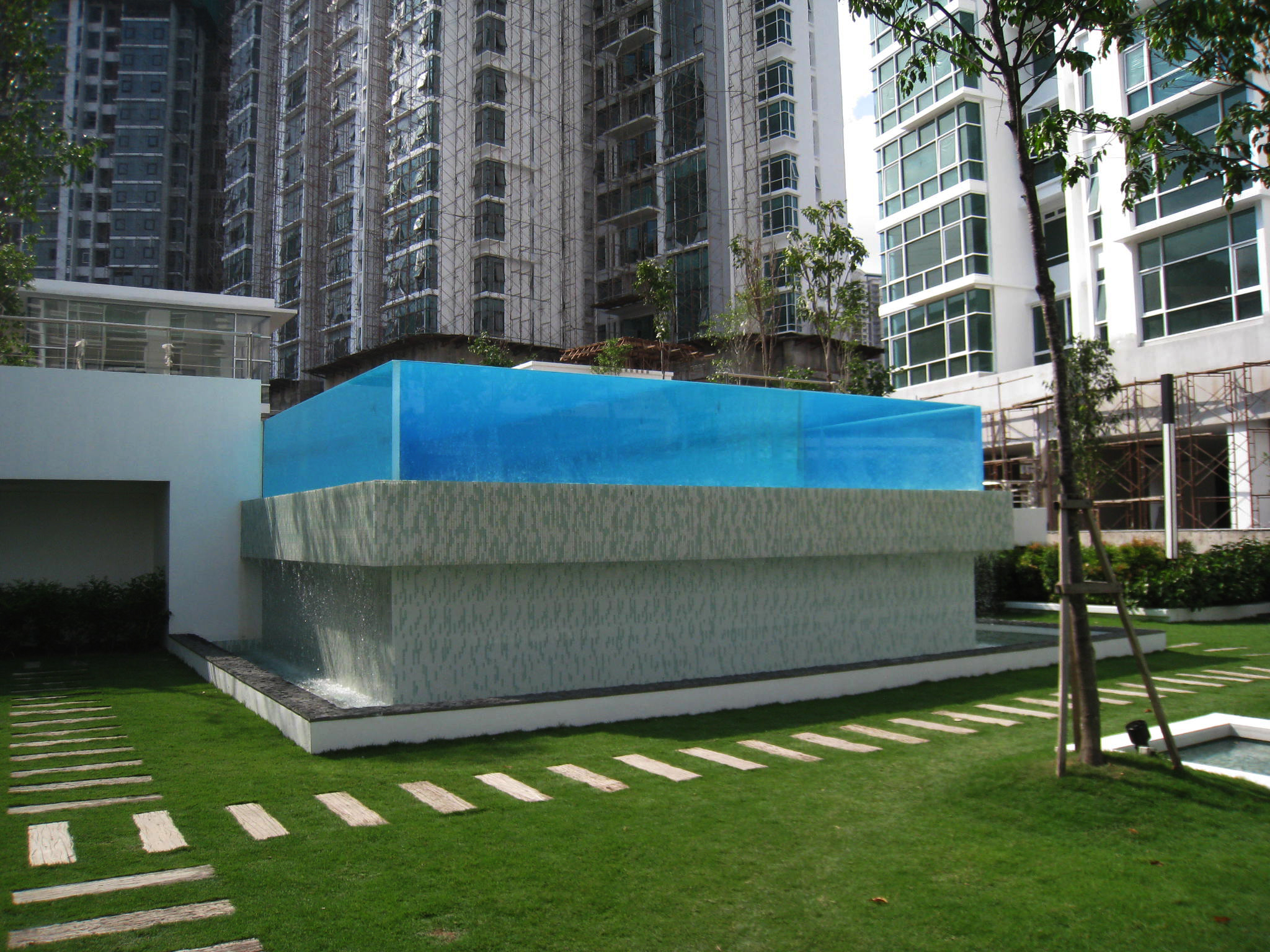

50 Meter Long Lap Pool

Sunway Vivaldi at Mont Kiara, Kuala Lumpur.

The arcylic feature swimming pool been surrounded by 240 units of luxury duplex condominium which located the heart of Kuala Lumpur, Malaysia.The acrylic wall been installed at the edge of the 50 meter long lap pool that been situated at the center of the whole development.

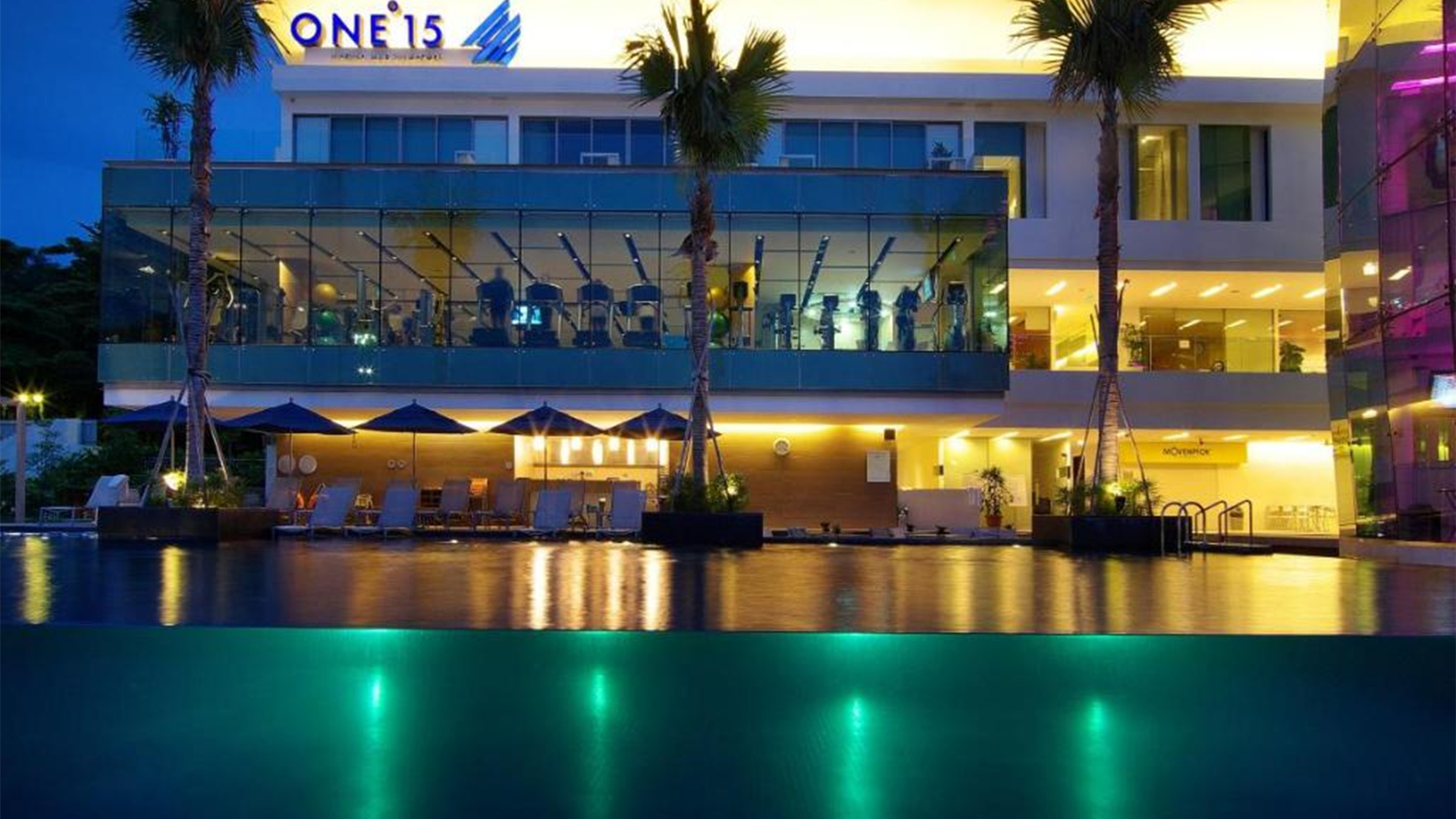

Infinity Pool

Chubhouse at Sentosa Cove, Singapore.

This waterfront infinity pool is locating at the yacth club at the Sentosa Island, Singapore. The 23 meter long acrylic wall been sent to the site in 3 segments to overcome the logistic contriant and chemically bonded onsite by our experienced technicians to create a seamless bonding and finless clear wall.

Specification

NO.	Physical Property	ISO	Unit	Result
1.	Specific gravity / density	D792	Kg/m	1175
Optical
2.	Luminous Transmittance	GB/T2410-2008	%	92.6
3.	Haze	GB/T2410-2008	%	1.8
Mechanical
4.	Tensile Strength	527-2:2012
	a) Maximum tensile strength		MPa	80.7
	b) Elongation at break		%	4
	c)Tensile modulus		MPa	3010
5.	Flexural Strength	178:2010
	a) Maximum flexural strength		MPa	87.7
	b) Maximum flexural strength		MPa	2900
6.	Comintsane Yield Stress	604:2002	MPa	No Yield Point
7.	Izod Notched Immpact Stress	D256-10 (Method c)	J/m	8
8.	Shear Strength	D732-10	MPa	62.5
9.	Rockwell Hardness	2039-2:1987	HRL	105
Thermal
10.	Flammability	UL94-2013 (7)	mm/min	24.1
11.	Heat Deflection Temperature	75-2:2013(Method B)	°C	106.2
12.	Glass Transition Temperature	11357-2:1999
	a)Teig		°C	105.6
	b)Tmg		°C	114.0
	c)Tefg		°C	122.3
13.	Coefficient of Linear Thermal Expansion	11359-2:1999	°C	-40 to 110
	a)Parallel to flow		um/m-°C	78.60
	b)Perpendicular to flow		um/m-°C	80.56
Others
14.	Water Absorption	62:2008	%	0.12
15.	Odor			None
16.	Taste			None

Product Name	Acrylic pool	Shape	Customer's Demand
Brand	AUPOOL	Color	Clear/transparent
Material	Lucite Acrylic	Place of Product	Guangdong Province,China
Surface	High Surface Hardness	Modes of packing	PE film masking on both sides,KT board and angle iron.
Thickness	20-950 mm customized	Light transmission	High light transmission(93%)

Detailed Images

Top Raw Materials

Raw material selection:

Brand new high-quality Lucite PMMA raw material

Raw material transportation: Using drums of high-cost independent manufacturers

Dry thermostatic

polymerization

Using the dry constant temperature polymerization method, the acrylic sheet reaches the optimum polymerization temperature, with stable structure and superior performance.

In the past 30 years since the establishment of the factory, the safety accident rate has been zero

Excellent performance

Good visual effect

High safety factor

Excellent processing performance

Safety Work

AUPOOL has a skilled and experienced acrylic professional installation team, participating in the design and construction of more than 1,000 domestic and foreign aquariums, acrylic infinity swimming pools, acrylic suspended swimming pools and other engineering projects, so far 0 quality accidents, 0 safety accidents.
